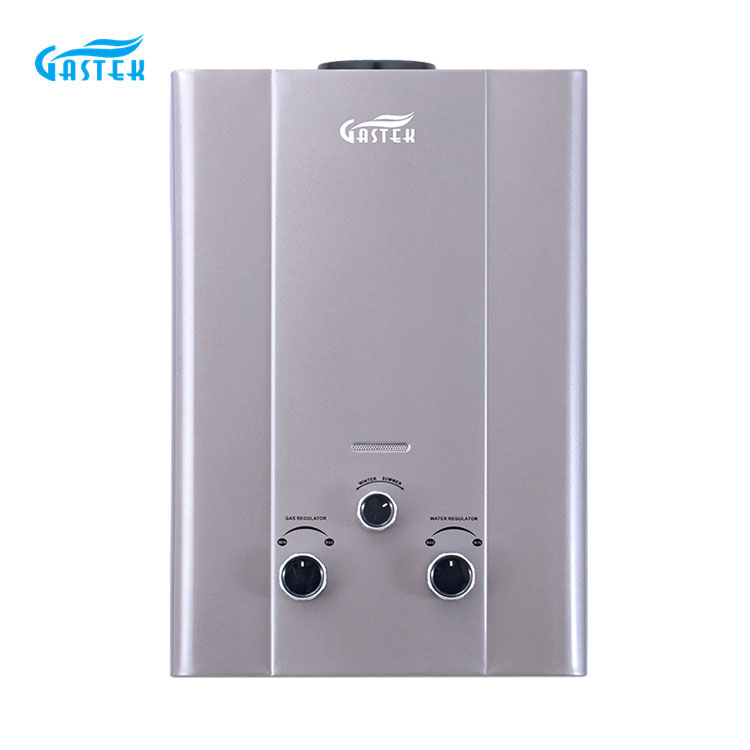

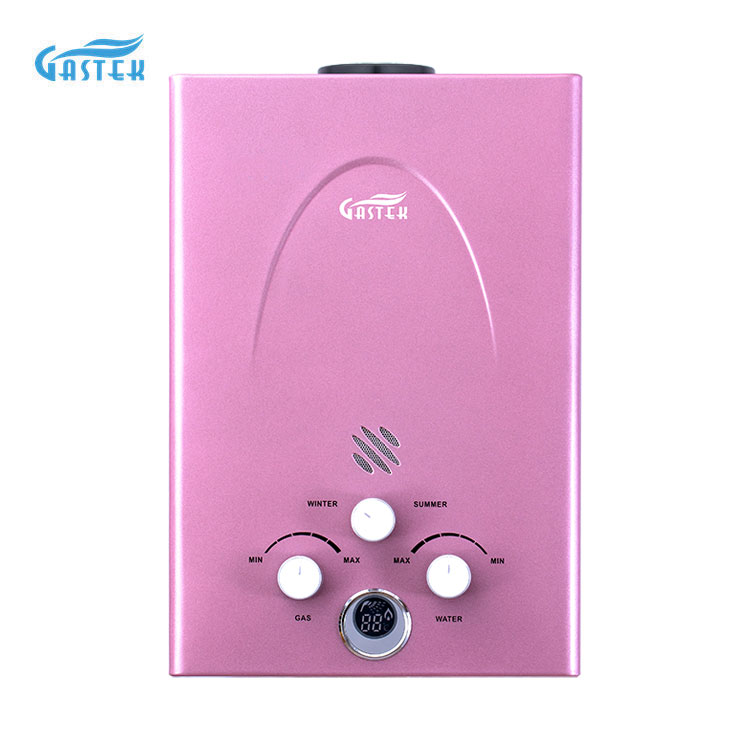

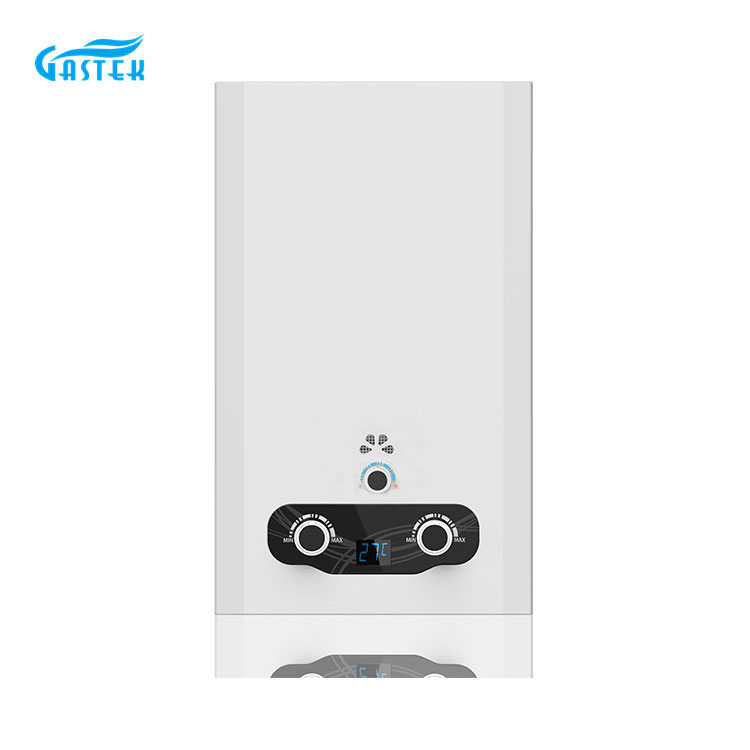

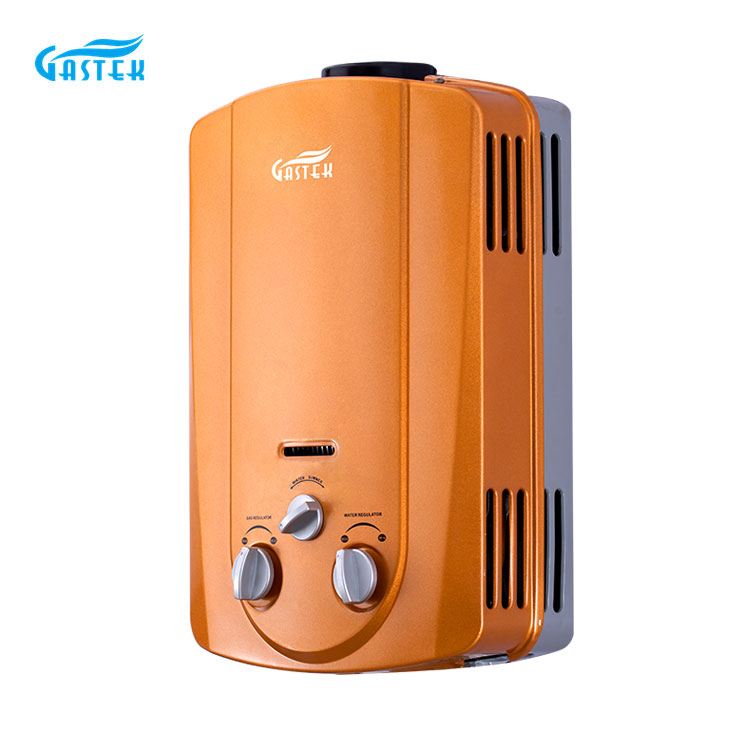

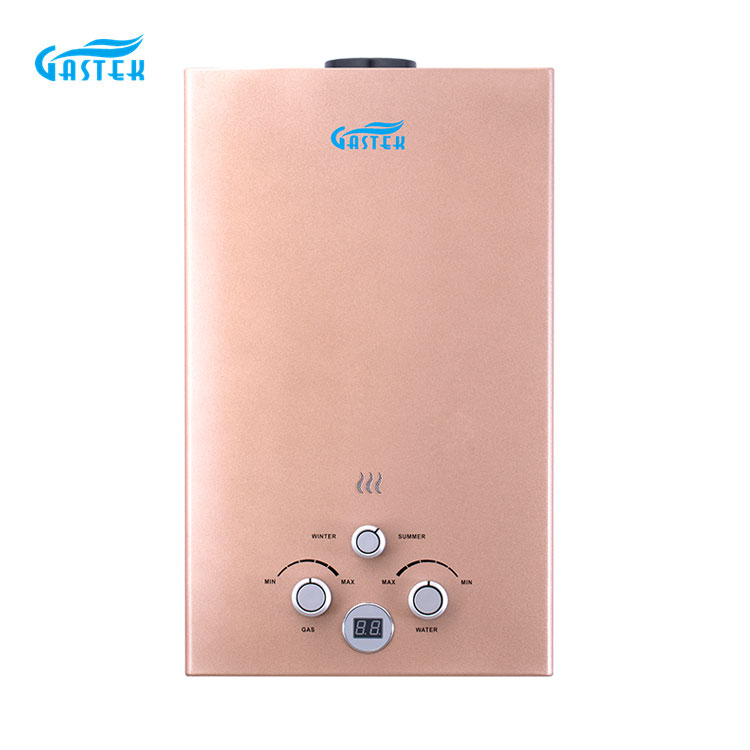

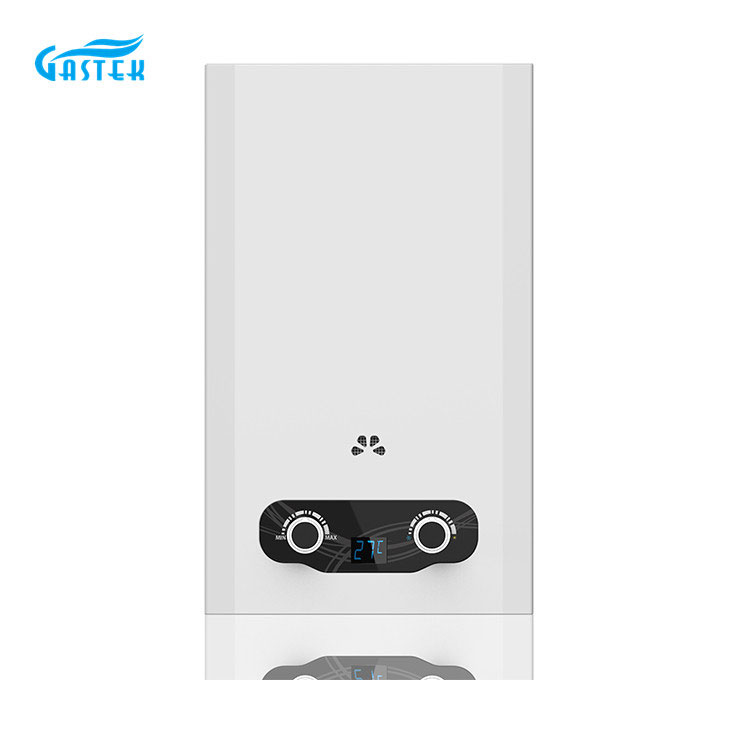

This 10L common flue type gas water heater can supply instant, endless, on-demand hot water. It’s wall mounted, with compact size, easy for installation. With flameout protection, Ignition failure protection, anti-freezing protection, over heating protection, etc. can ensure the family safety.
10L gas water heater U Series
This 10L common flue type gas water heater can supply instant, endless, on-demand hot water. It’s wall mounted, with compact size, easy for installation. With flameout protection, Ignition failure protection, anti-freezing protection, over heating protection, etc. can ensure the family safety.
|
Water Flow(L/min) △T=25K |
5L | 6L | 8L | 10L | 12L | 14L | 16L | 18L |
| Rated heat load | 10kW | 12kW | 16kW | 20kW | 24kW | 28kW | 32kW | 36kW |
| Gas type | NG/LPG | |||||||
| Ignition type | Automatic pulse ignition | |||||||
| Flue pipe diameter | Φ90mm | Φ90mm | Φ110mm | Φ110mm | Φ110mm | Φ130mm | Φ130mm | Φ130mm |
| Applied water pressure | 0.025-0.75Mpa | |||||||
| Power supply | DC,3V | |||||||
| Gas Inlet | G 1/2" | |||||||
| Water Inlet | G 1/2" | |||||||
| Water Outlet | G 1/2" | |||||||
| Production Dimension | 440*300*138mm | 440*300*135mm | 520*320*168mm | 550*330*188mm | 610*350*188mm | 650*400*188mm | 700*440*200mm | 700*440*200mm |
| Packing Dimension | 525*360*200mm | 525*360*200mm | 630*370*225mm | 635*395*245mm | 710*410*245mm | 745*455*250mm | 800*495*260mm | 800*495*260mm |
| G.Weight | 5.5kgs | 5.9kgs | 7.8kgs | 9.2kgs | 10.5kgs | 13.2kgs | 15.3kgs | 16.3kgs |
|
Loading Capacity (20'GP/40'GP/40'HQ) |
800pcs/1600pcs/1900pcs | 550pcs/1100pcs/1300pcs | 490pcs/980pcs/1150pcs | 420pcs/840pcs/1000pcs | 350pcs/700pcs/810pcs | 280pcs/560pcs/650pcs | ||
1） Wide range, endless, tankless, instant hot water capacity from 5L-18L
2) Multi-safety protections, like over-heating protection, Anti-dry combustion protection, Automatic electrical pulse ignition device, Flame out protection, Automatically shut off when combustion is incomplete.
3) Different selective temperature display;
4) Different selective knobs;
5) Winter/summer adjustment, make hot water temperature more comfort
6) 20 or 40 min timer available
7) 2 batteries powered
